IPC
[generic]

HelenOS uspace IPC. More...

Files
file	ipc.h
file	ns.h
file	services.h
	List of all known services and their codes.
file	ipc.c
Data Structures
struct	ipc_call_t
struct	async_call_t
Defines
#define	ipc_call_sync_2(phoneid, method, arg1, arg2, res1, res2)   ipc_call_sync_3((phoneid), (method), (arg1), (arg2), 0, (res1), (res2), 0)
#define	ipc_call_async(phoneid, method, arg1, private, callback, can_preempt)   (ipc_call_async_2(phoneid, method, arg1, 0, private, callback, can_preempt))
#define	SERVICE_PCI   1
#define	SERVICE_KEYBOARD   2
#define	SERVICE_VIDEO   3
#define	SERVICE_CONSOLE   4
#define	SERVICE_MEM_REALTIME   1
#define	SERVICE_MEM_KLOG   2
Typedefs
typedef sysarg_t	ipcarg_t
typedef sysarg_t	ipc_callid_t
typedef void(*	ipc_async_callback_t )(void *private, int retval, ipc_call_t *data)
Functions
int	ipc_call_sync_3 (int phoneid, ipcarg_t method, ipcarg_t arg1, ipcarg_t arg2, ipcarg_t arg3, ipcarg_t *result1, ipcarg_t *result2, ipcarg_t *result3)
int	ipc_call_sync (int phoneid, ipcarg_t method, ipcarg_t arg1, ipcarg_t *result)
ipc_callid_t	ipc_wait_cycle (ipc_call_t *call, uint32_t usec, int flags)
ipc_callid_t	ipc_wait_for_call_timeout (ipc_call_t *data, uint32_t usec)
static ipc_callid_t	ipc_wait_for_call (ipc_call_t *data)
ipc_callid_t	ipc_trywait_for_call (ipc_call_t *data)
ipcarg_t	ipc_answer_fast (ipc_callid_t callid, ipcarg_t retval, ipcarg_t arg1, ipcarg_t arg2)
ipcarg_t	ipc_answer (ipc_callid_t callid, ipc_call_t *call)
void	ipc_call_async_2 (int phoneid, ipcarg_t method, ipcarg_t arg1, ipcarg_t arg2, void *private, ipc_async_callback_t callback, int can_preempt)
void	ipc_call_async_3 (int phoneid, ipcarg_t method, ipcarg_t arg1, ipcarg_t arg2, ipcarg_t arg3, void *private, ipc_async_callback_t callback, int can_preempt)
int	ipc_connect_to_me (int phoneid, int arg1, int arg2, ipcarg_t *phone)
int	ipc_connect_me_to (int phoneid, int arg1, int arg2)
int	ipc_hangup (int phoneid)
int	ipc_register_irq (int irq, irq_code_t *code)
int	ipc_unregister_irq (int irq)
int	ipc_forward_fast (ipc_callid_t callid, int phoneid, int method, ipcarg_t arg1)
	LIST_INITIALIZE (dispatched_calls)
	LIST_INITIALIZE (queued_calls)
static ipc_callid_t	_ipc_call_async (int phoneid, ipc_call_t *data)
static async_call_t *	ipc_prepare_async (void *private, ipc_async_callback_t callback)
static void	ipc_finish_async (ipc_callid_t callid, int phoneid, async_call_t *call, int can_preempt)
static void	try_dispatch_queued_calls (void)
static void	handle_answer (ipc_callid_t callid, ipc_call_t *data)
Variables
static atomic_t	ipc_futex = FUTEX_INITIALIZER

---

Detailed Description

---

Define Documentation

#define ipc_call_sync_2 (  phoneid, method, arg1, arg2, res1, res2   )     ipc_call_sync_3((phoneid), (method), (arg1), (arg2), 0, (res1), (res2), 0)

Definition at line 54 of file ipc.h. Referenced by do_send_msg().

#define ipc_call_async (  phoneid, method, arg1, private, callback, can_preempt   )     (ipc_call_async_2(phoneid, method, arg1, 0, private, callback, can_preempt))

Definition at line 75 of file ipc.h. Referenced by do_send_msg().

#define SERVICE_PCI   1

Definition at line 40 of file services.h.

#define SERVICE_KEYBOARD   2

Definition at line 41 of file services.h. Referenced by main().

#define SERVICE_VIDEO   3

Definition at line 42 of file services.h. Referenced by main().

#define SERVICE_CONSOLE   4

Definition at line 43 of file services.h. Referenced by main(), open_stdin(), and open_stdout().

#define SERVICE_MEM_REALTIME   1

Definition at line 46 of file services.h. Referenced by gettimeofday(), and main().

#define SERVICE_MEM_KLOG   2

Definition at line 47 of file services.h. Referenced by main().

---

Typedef Documentation

typedef sysarg_t ipcarg_t

Definition at line 44 of file ipc.h.

typedef sysarg_t ipc_callid_t

Definition at line 49 of file ipc.h.

typedef void(* ipc_async_callback_t)(void *private, int retval, ipc_call_t *data)

Definition at line 51 of file ipc.h.

---

Function Documentation

int ipc_call_sync_3 (  int  phoneid, ipcarg_t  method, ipcarg_t  arg1, ipcarg_t  arg2, ipcarg_t  arg3, ipcarg_t *  result1, ipcarg_t *  result2, ipcarg_t *  result3 )

Definition at line 99 of file ipc.c. References __SYSCALL3. Referenced by gettimeofday(), ipc_connect_me_to(), ipc_connect_to_me(), and main().

int ipc_call_sync (  int  phoneid, ipcarg_t  method, ipcarg_t  arg1, ipcarg_t *  result )

Definition at line 84 of file ipc.c. References __SYSCALL4.

ipc_callid_t ipc_wait_cycle (  ipc_call_t *  call, uint32_t  usec, int  flags )

One cycle of ipc wait for call call dispatch ASYNC reoutines in the background Parameters: call  Space where the message is stored usec  Timeout in microseconds flags  Flags passed to SYS_IPC_WAIT (blocking, nonblocking) Returns: Callid of the answer. Definition at line 357 of file ipc.c. References __SYSCALL3, handle_answer(), and try_dispatch_queued_calls(). Referenced by async_manager_worker(), ipc_trywait_for_call(), and ipc_wait_for_call_timeout(). Here is the call graph for this function:

ipc_callid_t ipc_wait_for_call_timeout (  ipc_call_t *  call, uint32_t  usec )

Wait some time for an IPC call. dispatch ASYNC reoutines in the background Parameters: call  Space where the message is stored usec  Timeout in microseconds. Returns: Callid of the answer. Definition at line 379 of file ipc.c. References ipc_wait_cycle(). Referenced by ipc_wait_for_call(). Here is the call graph for this function:

static ipc_callid_t ipc_wait_for_call (  ipc_call_t *  data  )  [static]

Definition at line 65 of file ipc.h. References ipc_wait_for_call_timeout(). Referenced by main(). Here is the call graph for this function:

ipc_callid_t ipc_trywait_for_call (  ipc_call_t *  call  )

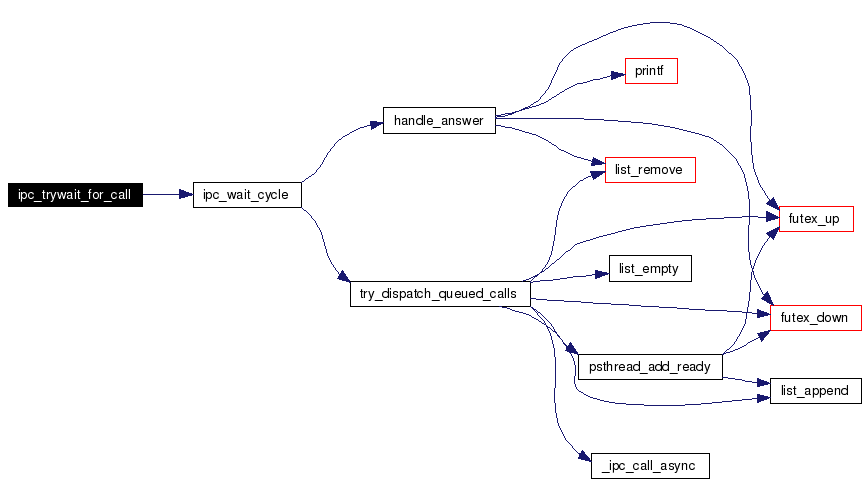

Check if there is an IPC call waiting to be picked up. dispatch ASYNC reoutines in the background Parameters: call  Space where the message is stored Returns: Callid of the answer. Definition at line 397 of file ipc.c. References ipc_wait_cycle(). Here is the call graph for this function:

ipcarg_t ipc_answer_fast (  ipc_callid_t  callid, ipcarg_t  retval, ipcarg_t  arg1, ipcarg_t  arg2 )

Send a fast answer to a received call. The fast answer makes use of passing retval and first two arguments in registers. If you need to return more, use the ipc_answer() instead. Parameters: callid  ID of the call being answered. retval  Return value. arg1  First return argument. arg2  Second return argument. Returns: Zero on success or a value from errno.h on failure. Definition at line 256 of file ipc.c. References __SYSCALL4. Referenced by async_new_connection(), client_connection(), connection_thread(), console_connection(), default_client_connection(), get_as(), handle_call(), keyboard_events(), main(), receive_comm_area(), and sysio_client_connection().

ipcarg_t ipc_answer (  ipc_callid_t  callid, ipc_call_t *  call )

Send a full answer to a received call. Parameters: callid  ID of the call being answered. call  Call data. Must be already initialized by the responder. Returns: Zero on success or a value from errno.h on failure. Definition at line 269 of file ipc.c. References __SYSCALL2.

void ipc_call_async_2 (  int  phoneid, ipcarg_t  method, ipcarg_t  arg1, ipcarg_t  arg2, void *  private, ipc_async_callback_t  callback, int  can_preempt )

Send asynchronous message if fatal error, call callback handler with proper error code if message cannot be temporarily sent, add to queue Definition at line 191 of file ipc.c. References __SYSCALL4, futex_down(), ipc_finish_async(), ipc_futex, ipc_prepare_async(), async_call_t::msg, and async_call_t::u. Referenced by async_msg_2(), and async_send_2(). Here is the call graph for this function:

void ipc_call_async_3 (  int  phoneid, ipcarg_t  method, ipcarg_t  arg1, ipcarg_t  arg2, ipcarg_t  arg3, void *  private, ipc_async_callback_t  callback, int  can_preempt )

Send asynchronous message if fatal error, call callback handler with proper error code if message cannot be temporarily sent, add to queue Definition at line 220 of file ipc.c. References _ipc_call_async(), futex_down(), ipc_finish_async(), ipc_futex, ipc_prepare_async(), async_call_t::msg, and async_call_t::u. Referenced by async_msg_3(), and async_send_3(). Here is the call graph for this function:

int ipc_connect_to_me (  int  phoneid, int  arg1, int  arg2, ipcarg_t *  phone )

Ask destination to do a callback connection Returns: 0 - OK, error code Definition at line 412 of file ipc.c. References ipc_call_sync_3(). Referenced by main(). Here is the call graph for this function:

int ipc_connect_me_to (  int  phoneid, int  arg1, int  arg2 )

Ask through phone for a new connection to some service Returns: new phoneid - OK, error code Definition at line 422 of file ipc.c. References ipc_call_sync_3(). Referenced by do_connect(), main(), open_stdin(), and open_stdout(). Here is the call graph for this function:

int ipc_hangup (  int  phoneid  )

Definition at line 435 of file ipc.c. References __SYSCALL1. Referenced by console_connection(), and do_hangup().

int ipc_register_irq (  int  irq, irq_code_t *  code )

Definition at line 440 of file ipc.c. References __SYSCALL2. Referenced by kbd_arch_init(), and main().

int ipc_unregister_irq (  int  irq  )

Definition at line 445 of file ipc.c. References __SYSCALL1.

int ipc_forward_fast (  ipc_callid_t  callid, int  phoneid, int  method, ipcarg_t  arg1 )

Definition at line 450 of file ipc.c. References __SYSCALL4. Referenced by connect_to_service().

LIST_INITIALIZE (  dispatched_calls   )

LIST_INITIALIZE (  queued_calls   )

List of async calls that were not accepted by kernel

static ipc_callid_t _ipc_call_async (  int  phoneid, ipc_call_t *  data )  [static]

Syscall to send asynchronous message Definition at line 126 of file ipc.c. References __SYSCALL2. Referenced by ipc_call_async_3(), and try_dispatch_queued_calls().

static async_call_t* ipc_prepare_async (  void *  private, ipc_async_callback_t  callback )  [static]

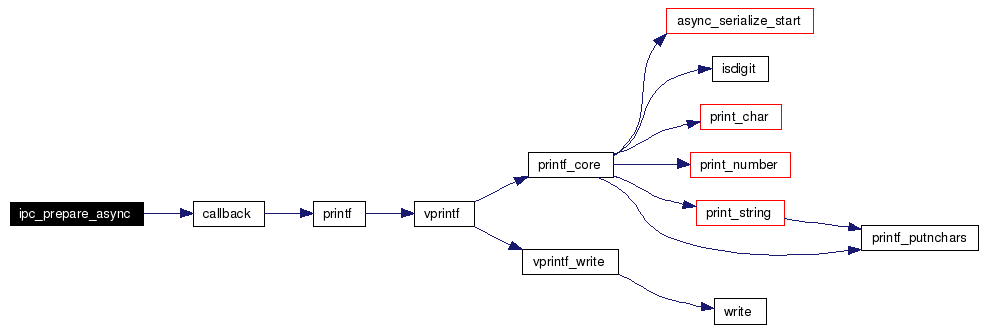

Prolog to ipc_async_send functions Definition at line 132 of file ipc.c. References callback(), and NULL. Referenced by ipc_call_async_2(), and ipc_call_async_3(). Here is the call graph for this function:

static void ipc_finish_async (  ipc_callid_t  callid, int  phoneid, async_call_t *  call, int  can_preempt )  [static]

Epilogue of ipc_async_send functions Definition at line 149 of file ipc.c. References async_futex, async_call_t::callback, async_call_t::callid, futex_down(), futex_up(), ipc_futex, async_call_t::list, list_append(), async_call_t::msg, NULL, async_call_t::private, PS_TO_MANAGER, psthread_get_id(), psthread_schedule_next_adv(), async_call_t::ptid, and async_call_t::u. Referenced by ipc_call_async_2(), and ipc_call_async_3(). Here is the call graph for this function:

static void try_dispatch_queued_calls (  void   )  [static]

Try to dispatch queed calls from async queue Definition at line 276 of file ipc.c. References _ipc_call_async(), async_futex, async_call_t::callback, async_call_t::callid, futex_down(), futex_up(), ipc_futex, async_call_t::list, list_append(), list_empty(), list_get_instance, list_remove(), async_call_t::msg, NULL, async_call_t::private, psthread_add_ready(), async_call_t::ptid, and async_call_t::u. Referenced by ipc_wait_cycle(). Here is the call graph for this function:

static void handle_answer (  ipc_callid_t  callid, ipc_call_t *  data )  [static]

Handle received answer TODO: Make it use hash table Parameters: callid  Callid (with first bit set) of the answered call Definition at line 322 of file ipc.c. References async_call_t::callback, async_call_t::callid, futex_down(), futex_up(), ipc_futex, async_call_t::list, list_get_instance, list_remove(), link::next, printf(), async_call_t::private, and async_call_t::u. Referenced by ipc_wait_cycle(). Here is the call graph for this function:

---

Variable Documentation

atomic_t ipc_futex = FUTEX_INITIALIZER [static]

Definition at line 82 of file ipc.c. Referenced by handle_answer(), ipc_call_async_2(), ipc_call_async_3(), ipc_finish_async(), and try_dispatch_queued_calls().

---
