genarch
[Memory management]


Files

file  as_pt.h
file  asid_fifo.h
file  page_pt.h
file  as_pt.c
 Address space functions for 4-level hierarchical pagetables.
file  asid.c
 ASID management.
file  asid_fifo.c
 FIFO queue ASID management.
file  page_pt.c
 Virtual Address Translation for hierarchical 4-level page tables.

Defines

#define FIFO_STATIC_LIMIT   1024
#define FIFO_STATIC   (ASIDS_ALLOCABLE<FIFO_STATIC_LIMIT)

Functions

void asid_fifo_init (void)
static pte_tptl0_create (int flags)
static void ptl0_destroy (pte_t *page_table)
static void pt_lock (as_t *as, bool lock)
static void pt_unlock (as_t *as, bool unlock)
 SPINLOCK_INITIALIZE (asidlock)
asid_t asid_get (void)
void asid_put (asid_t asid)
 FIFO_INITIALIZE_STATIC (free_asids, asid_t, ASIDS_ALLOCABLE)
asid_t asid_find_free (void)
void asid_put_arch (asid_t asid)
static void pt_mapping_insert (as_t *as, __address page, __address frame, int flags)
static void pt_mapping_remove (as_t *as, __address page)
static pte_tpt_mapping_find (as_t *as, __address page)

Variables

as_operations_t as_pt_operations
as_operations_t as_pt_operations
static count_t asids_allocated = 0
page_mapping_operations_t pt_mapping_operations

Define Documentation

#define FIFO_STATIC   (ASIDS_ALLOCABLE<FIFO_STATIC_LIMIT)


Definition at line 49 of file asid_fifo.c.

#define FIFO_STATIC_LIMIT   1024


Definition at line 48 of file asid_fifo.c.


Function Documentation

void asid_fifo_init void   )


Initialize data structures for O(1) ASID allocation and deallocation.

Definition at line 62 of file asid_fifo.c.

References ASID_START, ASIDS_ALLOCABLE, fifo_create, and fifo_push.

Referenced by as_arch_init().

asid_t asid_find_free void   )


Allocate free ASID.

Allocation runs in O(1).

Returns:
Free ASID.

Definition at line 81 of file asid_fifo.c.

References fifo_pop.

Referenced by asid_get().

asid_t asid_get void   )


Allocate free address space identifier.

Interrupts must be disabled and inactive_as_with_asid_lock must be held prior to this call

Returns:
New ASID.

Definition at line 83 of file asid.c.

References asid_find_free(), ASID_INVALID, asidlock, ASIDS_ALLOCABLE, asids_allocated, ASSERT, list_empty(), list_get_instance, list_remove(), mutex_lock_active, mutex_unlock(), link::next, spinlock_lock, spinlock_unlock(), tlb_invalidate_asid(), TLB_INVL_ASID, tlb_shootdown_finalize(), and tlb_shootdown_start().

Referenced by as_switch().

Here is the call graph for this function:

void asid_put asid_t  asid  )


Release address space identifier.

This code relies on architecture dependent functionality.

Parameters:
asid ASID to be released.

Definition at line 163 of file asid.c.

References asid_put_arch(), asidlock, asids_allocated, interrupts_disable(), interrupts_restore(), spinlock_lock, and spinlock_unlock().

Referenced by as_destroy().

Here is the call graph for this function:

void asid_put_arch asid_t  asid  )


Return ASID among free ASIDs.

This operation runs in O(1).

Parameters:
asid ASID being freed.

Definition at line 92 of file asid_fifo.c.

References fifo_push.

Referenced by asid_put().

FIFO_INITIALIZE_STATIC free_asids  ,
asid_t  ,
ASIDS_ALLOCABLE


FIFO queue containing unassigned ASIDs. Can be only accessed when asidlock is held.

void pt_lock as_t as,
bool  lock
[static]


Lock page tables.

Lock only the address space. Interrupts must be disabled.

Parameters:
as Address space.
lock If false, do not attempt to lock the address space.

Definition at line 122 of file as_pt.c.

References mutex_lock.

pte_t * pt_mapping_find as_t as,
__address  page
[static]


Find mapping for virtual page in hierarchical page tables.

Find mapping for virtual page.

The page table must be locked and interrupts must be disabled.

Parameters:
as Address space to which page belongs.
page Virtual page.
Returns:
NULL if there is no such mapping; entry from PTL3 describing the mapping otherwise.

Definition at line 244 of file page_pt.c.

References NULL, and PAGE_NOT_PRESENT.

void pt_mapping_insert as_t as,
__address  page,
__address  frame,
int  flags
[static]


Map page to frame using hierarchical page tables.

Map virtual address page to physical address frame using flags.

The page table must be locked and interrupts must be disabled.

Parameters:
as Address space to wich page belongs.
page Virtual address of the page to be mapped.
frame Physical address of memory frame to which the mapping is done.
flags Flags to be used for mapping.

Definition at line 71 of file page_pt.c.

References frame_alloc, FRAME_KA, memsetb(), ONE_FRAME, PAGE_CACHEABLE, PAGE_EXEC, PAGE_NOT_PRESENT, PAGE_PRESENT, PAGE_SIZE, PAGE_USER, PAGE_WRITE, and PFN2ADDR().

Here is the call graph for this function:

void pt_mapping_remove as_t as,
__address  page
[static]


Remove mapping of page from hierarchical page tables.

Remove any mapping of page within address space as. TLB shootdown should follow in order to make effects of this call visible.

Empty page tables except PTL0 are freed.

The page table must be locked and interrupts must be disabled.

Parameters:
as Address space to wich page belongs.
page Virtual address of the page to be demapped.

Definition at line 122 of file page_pt.c.

References memsetb(), and PAGE_NOT_PRESENT.

Here is the call graph for this function:

void pt_unlock as_t as,
bool  unlock
[static]


Unlock page tables.

Unlock the address space. Interrupts must be disabled.

Parameters:
as Address space.
unlock If false, do not attempt to unlock the address space.

Definition at line 136 of file as_pt.c.

References mutex_unlock().

Here is the call graph for this function:

pte_t * ptl0_create int  flags  )  [static]


Create PTL0.

PTL0 of 4-level page table will be created for each address space.

Parameters:
flags Flags can specify whether ptl0 is for the kernel address space.
Returns:
New PTL0.

Definition at line 71 of file as_pt.c.

References AS_KERNEL, frame_alloc, FRAME_KA, FRAME_PANIC, interrupts_disable(), interrupts_restore(), memcpy, memsetb(), mutex_lock, mutex_unlock(), ONE_FRAME, PAGE_SIZE, and PFN2ADDR().

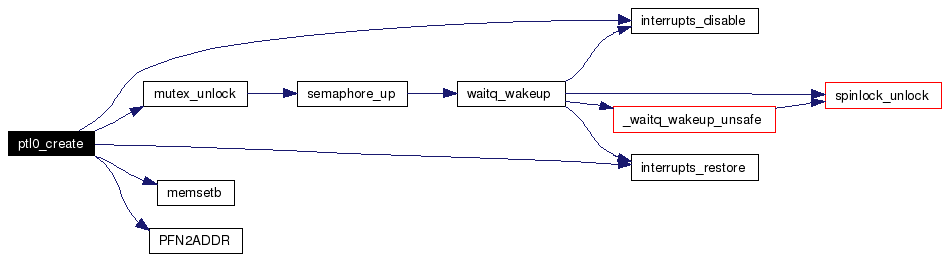

Here is the call graph for this function:

void ptl0_destroy pte_t page_table  )  [static]


Destroy page table.

Destroy PTL0, other levels are expected to be already deallocated.

Parameters:
page_table Physical address of PTL0.

Definition at line 109 of file as_pt.c.

References ADDR2PFN(), and frame_free().

Here is the call graph for this function:

SPINLOCK_INITIALIZE asidlock   )


asidlock protects the asids_allocated counter.


Variable Documentation

as_operations_t as_pt_operations


Initial value:

 {
        .page_table_create = ptl0_create,
        .page_table_destroy = ptl0_destroy,
        .page_table_lock = pt_lock,
        .page_table_unlock = pt_unlock
}

Definition at line 56 of file as_pt.c.

Referenced by as_arch_init().

as_operations_t as_pt_operations


Definition at line 56 of file as_pt.c.

Referenced by as_arch_init().

count_t asids_allocated = 0 [static]


Definition at line 74 of file asid.c.

Referenced by asid_get(), and asid_put().

page_mapping_operations_t pt_mapping_operations


Initial value:

 {
        .mapping_insert = pt_mapping_insert,
        .mapping_remove = pt_mapping_remove,
        .mapping_find = pt_mapping_find
}

Definition at line 53 of file page_pt.c.

Referenced by page_arch_init().
