#829 closed defect (fixed)

System deadlocks early in boot on ia32 with FPU lazy context switching off

Reported by: Jiri Svoboda Owned by: Jiri Svoboda
Priority: major Milestone: 0.12.1
Component: helenos/unspecified Version: mainline
Keywords: Cc:
Blocker for: Depends on:
See also:


Steps to reproduce:

(1) Build sysytem with default ia32 build config, except lazy FPU context switching disabled
(2) tools/

Attachments (1)

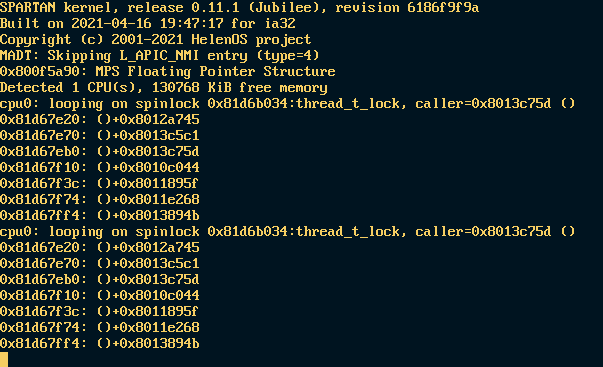

System deadlocked early in boot with ia32/lazy FPU context switching = off

Download all attachments as: .zip

Change History (13)

by Jiri Svoboda, 3 years ago

Attachment: lazyfpuoff_deadlock.png added

System deadlocked early in boot with ia32/lazy FPU context switching = off

comment:1 by Jiri Svoboda, 3 years ago

This does not seem to happen on amd64.

comment:2 by Jiri Svoboda, 2 years ago


comment:3 by Jiri Svoboda, 23 months ago

am64 + lazy FPU context switching = Off works fine (i.e. problem NOT reproduced)

comment:4 by Jiri Svoboda, 23 months ago

Owner: set to Jiri Svoboda
Status: newassigned

Stack trace:

0x81967e20: 0x8012a8d5 stack_trace+0x13
0x81967e70: 0x8013c761 spinlock_lock_debug+0x84
0x81967eb0: 0x8013c8fd irq_spinlock_lock+0x24
0x81967f10: 0x8010c044 exc_dispatch+0x3d
0x81967f3c: 0x801189ef int_7+0x69
0x81967f74: 0x8011e318 fpu_init+0xf
0x81967ff4: 0x80138adb scheduler_separated_stack+0x59c
011e309 <fpu_init>:
8011e309:       55                      push   %ebp
8011e30a:       89 e5                   mov    %esp,%ebp
8011e30c:       83 ec 10                sub    $0x10,%esp
8011e30f:       c7 45 fc 00 00 00 00    movl   $0x0,-0x4(%ebp)
8011e316:       31 c0                   xor    %eax,%eax
8011e318:       db e3                   fninit
8011e31a:       0f ae 5d fc             stmxcsr -0x4(%ebp)
8011e31e:       8b 45 fc                mov    -0x4(%ebp),%eax
8011e321:       0d 80 1f 00 00          or     $0x1f80,%eax
8011e326:       89 45 fc                mov    %eax,-0x4(%ebp)
8011e329:       0f ae 55 fc             ldmxcsr -0x4(%ebp)
8011e32d:       c9                      leave
8011e32e:       c3                      ret
Last edited 23 months ago by Jiri Svoboda (previous) (diff)

comment:5 by Jiri Svoboda, 23 months ago

While executing fninit instruction in function fpu_init() we get a #NM (7) exception. exc_dispatch() will attempt to lock THREAD→lock, which is currently held, leading to deadlock.

fpu_init() is called from before_thread_runs() from scheduler_separated_stack() while THREAD→lock is being held.

comment:6 by Jiri Svoboda, 23 months ago

I might be wrong, but it seems to me that maybe we do not expect to get an exception while executing fninit. Here's a few interesting tidbits from Intel 64 and IA-32 Architectures Software Developer's Manual:

FINIT/FNINIT Instruction
The FINIT instruction checks for and handles any pending unmasked floating-point exceptions before performing the initialization; the FNINIT instruction does not.

and also

When operating a Pentium or Intel486 processor in MS-DOS compatibility mode, it is possible (under unusual circumstances) for an FNINIT instruction to be interrupted prior to being executed to handle a pending FPU exception. See the section titled “No-Wait FPU Instructions Can Get FPU Interrupt in Window” in Appendix D of the Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 1, for a description of these circumstances. An FNINIT instruction cannot be interrupted in this way on later Intel processors, except for the Intel QuarkTM X1000 processor.

and also

8.7.2 MS-DOS* Compatibility Sub-mode
If CR0.NE[bit 5] is 0, the MS-DOS compatibility mode for handling floating-point exceptions is selected. In this mode, the software exception handler for floating-point exceptions is invoked externally using the processor’s FERR#, INTR, and IGNNE# pins. This method of reporting floating-point errors and invoking an exception handler is provided to support the floating-point exception handling mechanism used in PC systems that are running the MS-DOS or Windows* 95 operating system.

comment:7 by Jiri Svoboda, 23 months ago

Also forgot to mention that THREAD→lock locking was added to exc_dispatch() for the purpose of thread accounting.

comment:8 by Jiri Svoboda, 23 months ago

If I run the ia32 build as usual, except replace qemu-system-i386 with qemu-system-x86_64, the system still deadlocks. (I thought maybe the CPU is different and it might make some difference).

It also appears that passing different -cpu flags to qemu-system-x86_64 (e.g. 486, Broadwell, Haswell, host. max) does not seem to make any difference.

comment:9 by Jiri Svoboda, 23 months ago

I think the immediate cause here is that CR0.TS is set and, for some reason, the conditions are such that wit CR0.TS set fninit causes #NM exception. I think I've verified this: Added "clts" instruction to the beginning of fpu_init(), this allowed the system to start booting, then deadlock again. Added "clts" instruction to the beginning of fpu_context_f_restore() and fpu_context_fx_restore() and the system booted up correctly.

That said, I am not sure whether this is the correct fix. I'd like to look at the conditions needed for clts to generate an exception, (e.g. the MS-DOS compatibility mode), perhaps preventing these conditions could be used as a solution as well.

comment:10 by Jiri Svoboda, 23 months ago

Ok so MS-DOS Compatibility mode means CR0.NE == 0. We do not set CR0.NE (Which is 0 by default), i.e. we do not enable internal FPU exceptions (CR0.NE is available for 486+). Now I tried setting CP0.NE = 1 in pm_init(), but this did not help (note this should change the exception vector number, although I did not notice any problem even with lazy FPU switching enabled). Even if it did help, it would be no help on an actual 386 system.

Now I was looking at kernel/arch/ia32/src/cpu/cpu.c's fpu_enable()/fpu_disable() and before_thread_runs() in kernel/generic/src/proc/scheduler.c and I just could not understand what the hell we are doing. Then I looked and amd64's cpu.c (amd64 works, afterall), and the problem becomes obvious:


oid fpu_disable(void)
        write_cr0(read_cr0() | CR0_TS);

void fpu_enable(void)
        write_cr0(read_cr0() & ~CR0_TS);

and compare to


oid fpu_disable(void)
        write_cr0(read_cr0() & ~CR0_TS);

void fpu_enable(void)
        write_cr0(read_cr0() | CR0_TS);

We can see that on ia32 we are setting the CR0.TS bit in reverse (one when it should be zero and vice versa)!

comment:11 by Jiri Svoboda, 23 months ago

This problem was introduced by this changeset:

57c2a87b03a0b6c08cef4f64f0cf52a7d8b38b62 (Avoid even more magic numbers) in May 2016 (i.e. 0.7.0).

comment:12 by Jiri Svoboda, 23 months ago

Resolution: fixed
Status: assignedclosed
