Appendix A. Architecture Specific Notes

Table of Contents

A.1. AMD64/Intel EM64T
A.1.1. Virtual Memory
A.1.2. TLB-only Paging
A.1.3. Mapping of Physical Memory
A.1.4. Thread Local Storage
A.1.5. Fast SYSCALL/SYSRET Support
A.1.6. Debugging Support
A.2. Intel IA-32
A.3. 32-bit MIPS
A.3.1. Thread Local Storage
A.3.2. Lazy FPU Context Switching
A.4. Power PC
A.4.1. OpenFirmware Boot
A.4.2. Thread Local Storage
A.5. IA-64
A.5.1. Two IA-64 Stacks
A.5.2. Thread Local Storage

A.1. AMD64/Intel EM64T

The amd64 architecture is a 64-bit extension of the older ia32 architecture. Only 64-bit applications are supported. Creating this port was relatively easy, because it shares a lot of common code with ia32 platform. However, the 64-bit extension has some specifics, which made the porting interesting.

A.1.1. Virtual Memory

The amd64 architecture uses standard processor defined 4-level page mapping of 4KB pages. The NX(no-execute) flag on individual pages is fully supported.

A.1.2. TLB-only Paging

All memory on the amd64 architecture is memory mapped, if the kernel needs to access physical memory, a mapping must be created. During boot process the boot loader creates mapping for the first 20MB of physical memory. To correctly initialize the page mapping system, an identity mapping of whole physical memory must be created. However, to create the mapping it is unavoidable to allocate new - possibly unmapped - frames from frame allocator. The ia32 solves it by mapping first 2GB memory during boot process. The same solution on 64-bit platform becomes unfeasible because of the size of the possible address space.

As soon as the exception routines are initialized, a special page fault exception handler is installed which provides a complete view of physical memory until the real page mapping system is initialized. It dynamically changes the page tables to always contain exactly the faulting address. The page then becomes cached in the TLB and on the next page fault the same tables can be utilized to handle another mapping.

A.1.3. Mapping of Physical Memory

The amd64 ABI document describes several modes of program layout. The operating system kernel should be compiled in a kernel mode - the kernel is located in the negative 2 gigabytes (0xffffffff80000000-0xfffffffffffffffff) and can access data anywhere in the 64-bit space. This wouldn't allow kernel to see directly more than 2GB of physical memory. HelenOS duplicates the virtual mapping of the physical memory starting at 0xffff800000000000 and accesses all external references using this address range.

A.1.4. Thread Local Storage

The code accessing thread local storage uses a segment register FS as a base. The thread local storage is stored in the hidden 64-bit part of the FS register which must be written using priviledged machine specific instructions. Special syscall to change this register is provided to user applications. The TLS address for this platform is expected to point just after the end of the thread local data. The application sometimes need to get a real address of the thread local data in its address space but it is impossible to read the base of the FS segmentation register. The solution is to add the self-reference address to the end of thread local data, so that the application can read the address as %gs:0.

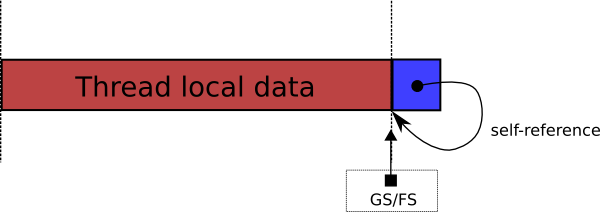

Figure A.1. IA-32 & AMD64 TLD

IA-32 & AMD64 TLD

A.1.5. Fast SYSCALL/SYSRET Support

The entry point for system calls was traditionally a speed problem on the ia32 architecture. The amd64 supports SYSCALL/SYSRET instructions. Upon encountering the SYSCALL instruction, the processor changes privilege mode and transfers control to an address stored in machine specific register. Unlike other similar instructions it does not change stack to a known kernel stack, which must be done by the syscall entry routine. A hidden part of a GS register is provided to support the entry routine with data needed for switching to kernel stack.

A.1.6. Debugging Support

To provide developers tools for finding bugs, hardware breakpoints and watchpoints are supported. The kernel also supports self-debugging - it sets watchpoints on certain data and upon every modification automatically checks whether a correct value was written. It is worthwhile to mention, that since this feature was implemented, the watchpoint was never fired.

A.2. Intel IA-32

The ia32 architecture uses 4K pages and processor supported 2-level page tables. Along with amd64, it is one of the two architectures that fully support SMP configurations. The architecture is mostly similar to amd64, it even shares a lot of code. The debugging support is the same as with amd64. The thread local storage uses GS register.

A.3. 32-bit MIPS

Both little and big endian kernels are supported. In order to test different page sizes, the mips32 page size was set to 16K. The mips32 architecture is TLB-only, the kernel simulates 2-level page tables. On processors that support it, lazy FPU context switching is implemented.

A.3.1. Thread Local Storage

The thread local storage support in compilers is a relatively recent phenomena. The standardization of such support for the mips32 platform is very new and even the newest versions of GCC cannot generate 100% correct code. Because of some weird MIPS processor variants, it was decided, that the TLS pointer will be gathered not from some of the free registers, but a special instruction was devised and the kernel is supposed to emulate it. HelenOS expects that the TLS pointer is in the K1 register. Upon encountering the reserved instruction exception and checking that the application is requesting a TLS pointer, it returns the contents of the K1 register. The K1 register is expected to point 0x7000 bytes after the beginning of the thread local data.

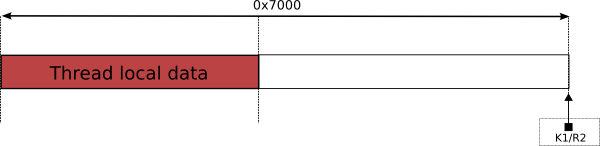

Figure A.2. MIPS & PowerPC TLD


A.3.2. Lazy FPU Context Switching

Implementing lazy FPU switching on MIPS architecture is straightforward. When coprocessor CP1 is disabled, any FPU intruction raises a Coprocessor Unusable exception. The generic lazy FPU context switch is then called that takes care of the correct context save/restore.

A.4. Power PC

PowerPC allows kernel to enable mode, where data and intruction memory reads are not translated through virtual memory mapping (real mode). The real mode is automatically enabled when an exception occurs. However, the kernel uses the same memory structure as on other 32-bit platforms - physical memory is mapped into the top 2GB, userspace memory is available in the bottom half of the 32-bit address space.

A.4.1. OpenFirmware Boot

The OpenFirmware loads an image of HelenOS operating system and passes control to the HelenOS specific boot loader. The boot loader then performs following tasks:

  • Fetches information from OpenFirmware regarding memory structure, device information etc.

  • Switches memory mapping to the real mode.

  • Copies the kernel to proper physical address.

  • Creates basic memory mapping and switches to the new kernel mapping, in which the kernel can run.

  • Passes control to the kernel main_bsp function.

A.4.2. Thread Local Storage

The Power PC thread local storage uses R2 register to hold an address, that is 0x7000 bytes after the beginning of the thread local data. Overally it is the same as on the MIPS architecture.

A.5. IA-64

The ia64 kernel uses 16K pages.

A.5.1. Two IA-64 Stacks

The architecture makes use of a pair of stacks. One stack is the ordinary memory stack while the other is a special register stack. This makes the ia64 architecture unique. HelenOS on ia64 solves the problem by allocating two physical memory frames for thread and scheduler stacks. The upper frame is used by the register stack while the first frame is used by the conventional memory stack. The generic kernel and userspace code had to be adjusted to cope with the possibility of allocating more frames for the stack.

A.5.2. Thread Local Storage

Although thread local storage is not officially supported in statically linked binaries, GCC supports it without any major obstacles. The r13 register is used as a thread pointer, the thread local data section starts at address r13+16.

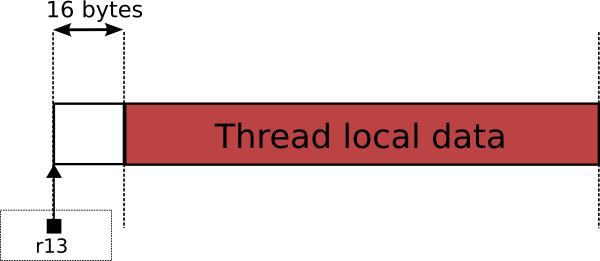

Figure A.3. IA-64 TLD
